LX100ABA Full Automatic Biochemistry Analyzer – Medical Grade Professional (Healthcare)

Professional general medical supplies for medical applications. Clinical grade quality, reliable performance. Healthcare facilities.

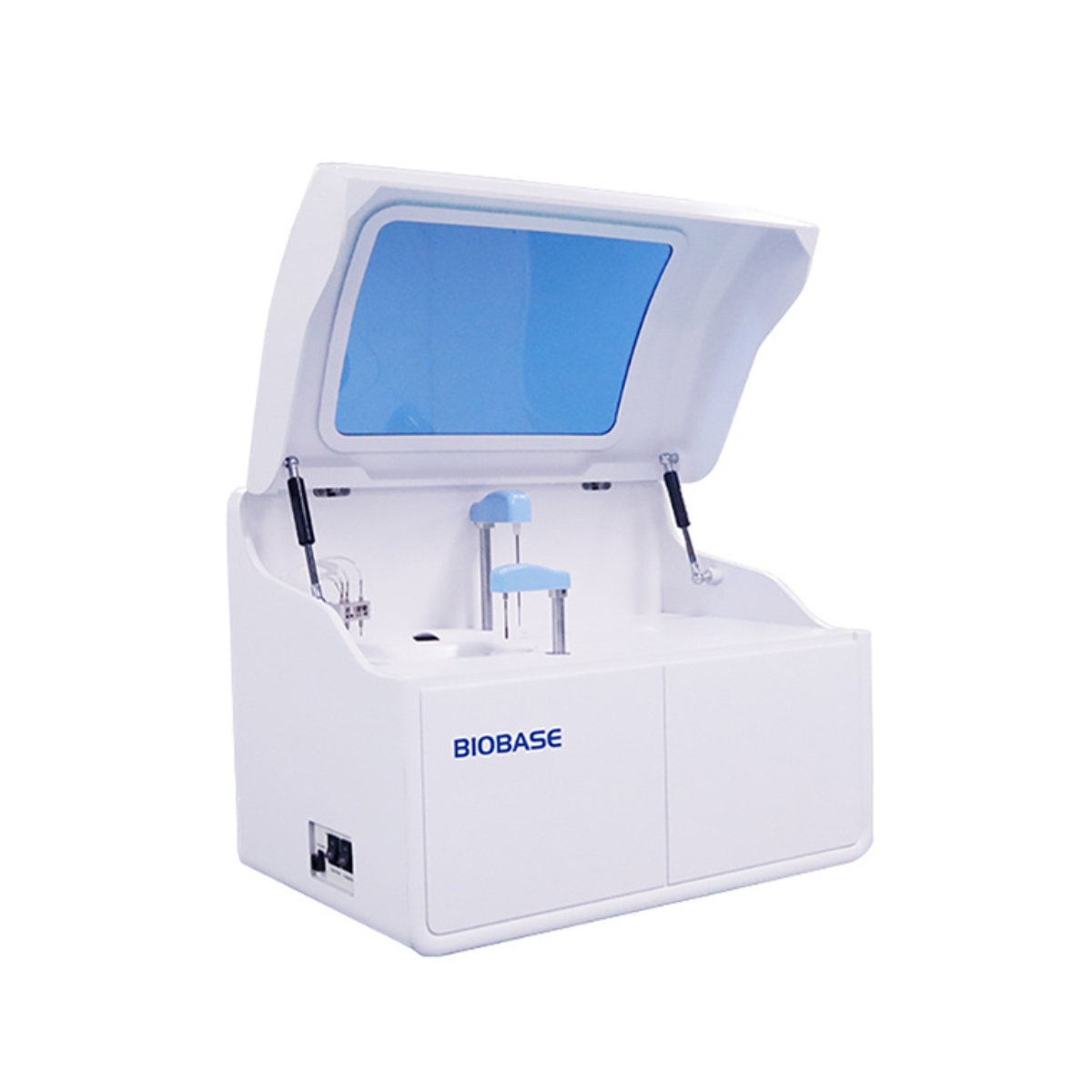

Automatic biochemistry analyzer LX100ABA is completely automated benchtop chemistry analyzer with a throughput of 200 tests per hour. Designed with expanded on-board testing, reduced sample volume, and simple operation, this is a suitable biochemical analyzer for low to mid-volume hospitals and laboratories worldwide. It has easy-to-use interface provides a long-term basis for analytical performance. This system contains standardized test menus, assay methods, instrument operations, and reference ranges, all of which limit operator variation and offer consistent quality results.
Features:
Designed with uninterrupted workflow
Refrigerated tray with independent switch
Crash and collision detection
It has intelligent software
Robust testing capabilities
Efficient reagent and consumable use
Simplify operations with user friendly graphical user interface design and touch-screen monitor
Technical Specification:?

Throughput
200 Tests/hour

Analysis Method
End-point, Fixed-time, Rate(Kinetic)

Sample Positions
37 sample positions

Reagent Position
28 reagent positions

Sample Volume
2-7?l

Reagent Volume
20-350?l

Probe
Teflon coating, with anti-collision function, liquid level detection function

Probe Washing
Automatic washing interior and exterior

Reagent Cooling
Refrigerated tray with independent switch

Temperature Control
37+0.2_, real-time monitoring

Cuvettes
48 reusable cuvettes, optical length 6mm

Light Source
6V/10W halogen lamp

Spectrophotometry
Post-spectral spectrophotometry

Wavelength
340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800 nm

Absorbance
0-3.0Abs

Calibration
Linear:K factor, 1-point ,2-point and multipoint linear

Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P

Quality Control
Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot (2D)

Software
Windows 7/8/10 , 32 or 64bit

LIS System
Bi-direction, support HL7 protocol

Interface
LAN port access

Power Supply
AC220V?10%,50/60Hz, 110V?10%,60Hz, 300W

Temperature
15~30_

Water Consumption
Deionized water:_5L/H

Humidity
40-85%

External Size (W x D x H)
625 x 425 x 460 mm

Package Size (W x D x H)
728 x 530 x 854 mm

Gross Weight
60 kgs

?
