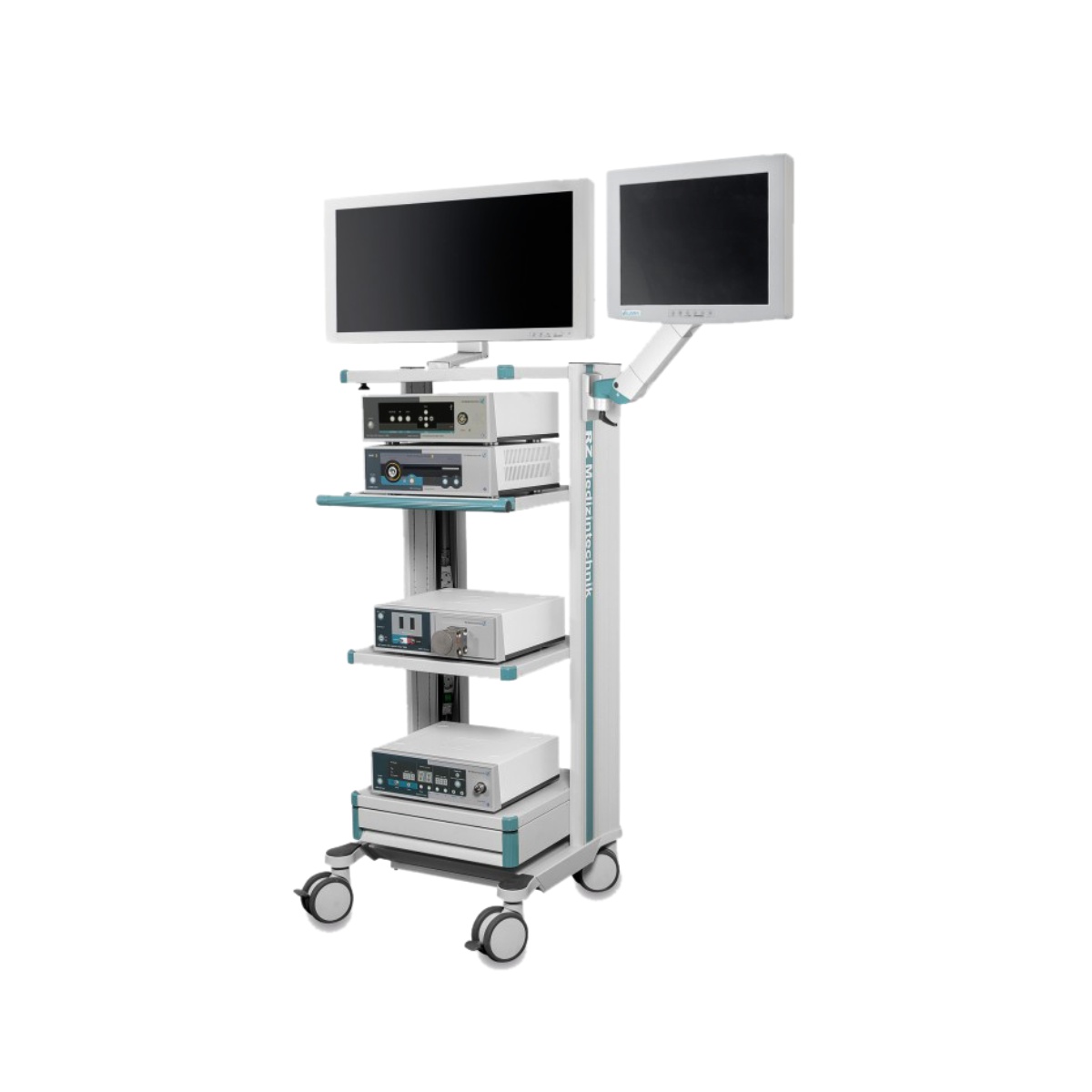

RZ Medizintechnik Complete Endoscopy Stack

Professional general medical supplies for medical applications. Clinical grade quality, reliable performance. Healthcare facilities.
RZ LED iLumen EndoVue 24_
Features:

1920_1200 (WUXGA), 518x324mm, 16:10
178? viewing angle, 49 W
24 inch TFT LCD (LED)
1920 x 1200 pixel (WUXGA)
2 x DVI-D
1 x SD/HD/3G-SDI (BNC)
2 x SOG
1 x VGA (D-sub)
1 x C-Video (BNC)
1 x S-Video (DIN)
1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1?
Features:

3-Chip Full HD camera with latest MOS technology for brilliant picture quality
Pure Natural Colors technology

Multitude of digital video outputs for

best possible picture transmission to medical grade monitors
3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
Full HD 60fps video recording
Full HD image saving
USB pen drive included
Boost function
On-screen-menu
3 user settings storable
5x digital zoom

Freeze function
LUMEN LED 1 High Intensity Light Source 180W
Features:

More than 10.000h lamp lifetime
Latest PHASER? ? Technology
Waterproof touch control panel
High color rendering
High luminance
Daylight color temperature
Low noise level
No UV or IR light
Low power consumption
Video-IN terminal ? 1 x VHS (BNC)

Color temperature ? 6000 ? 6500? K
AIRFLOW A2 INSUFFLATOR
Feature:

Gas Flow ? 20L/min
User-friendly interface
Highest safety standard for patients
Available with CO2 heating system
Pre-insufflation mode for use with Verres Cannulas
Non-heating unit features same gasflow rates as heating unit models
Gas connection ? UNF 7/16? male
Gas ? Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000
Feature:

Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
Also for extraction of smoke gases that arise when using lasers and HF devices
Optional footswitch for comfortable operation during surgery
Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
Independently digital pre-settings for maximum suction and irrigation pressures
Digital display of actual suction and irrigation pressures
High efficiency with rates up to 3L/min
Color coded tubing sets
Standby function
Irrigation Power ? 0 ? 3.0 ml/min
Suction Power ? 0 ? 3.0 ml/min
Pressure ? 0 ? 750 mmHg.

**DIATHERMY MACHINE 200W
Feature:

Stable and Powerful Generators,
Highest patient safety through REM system
Digital value indicator of chosen power output
Monopolar and Bipolar applications
Activation through Hand- or Footswitch
Safe application through color-coded membrane keypad
Max output power CUT?200W ? 250?
Max output power ENHANCED?120W ? 250?
Max output power BLEND120W ? 200?

Max output power FORCED COAG?150W ? 150?
Max output power SOFT COAG?90W ? 100?
Max output power BIPOLAR COAG?80W ? 50?
Working frequency?600 kHz
Patient circuit?F
Mains voltage?115-230 Vac
Mains frequency?50-60 Hz

Electrical input power?350 VA
HIGH-END TROLLEY
Feature:

Power columns for cables
Endoscope Holder
Variable height support arms
Conductive rolls
Optional doors and rear panel in order to protect valuable equipment
Optional main on/off switch

Accessory

Fibre Optic Light Guide Cable ? 4,8mm, 3000mm
Adaptor for Fibre Optic light guide Type RZ/Storz ? connection to unit

TV-adapter for RZ HD 3-Chip camera f=28mm, C-Mount, soakable
