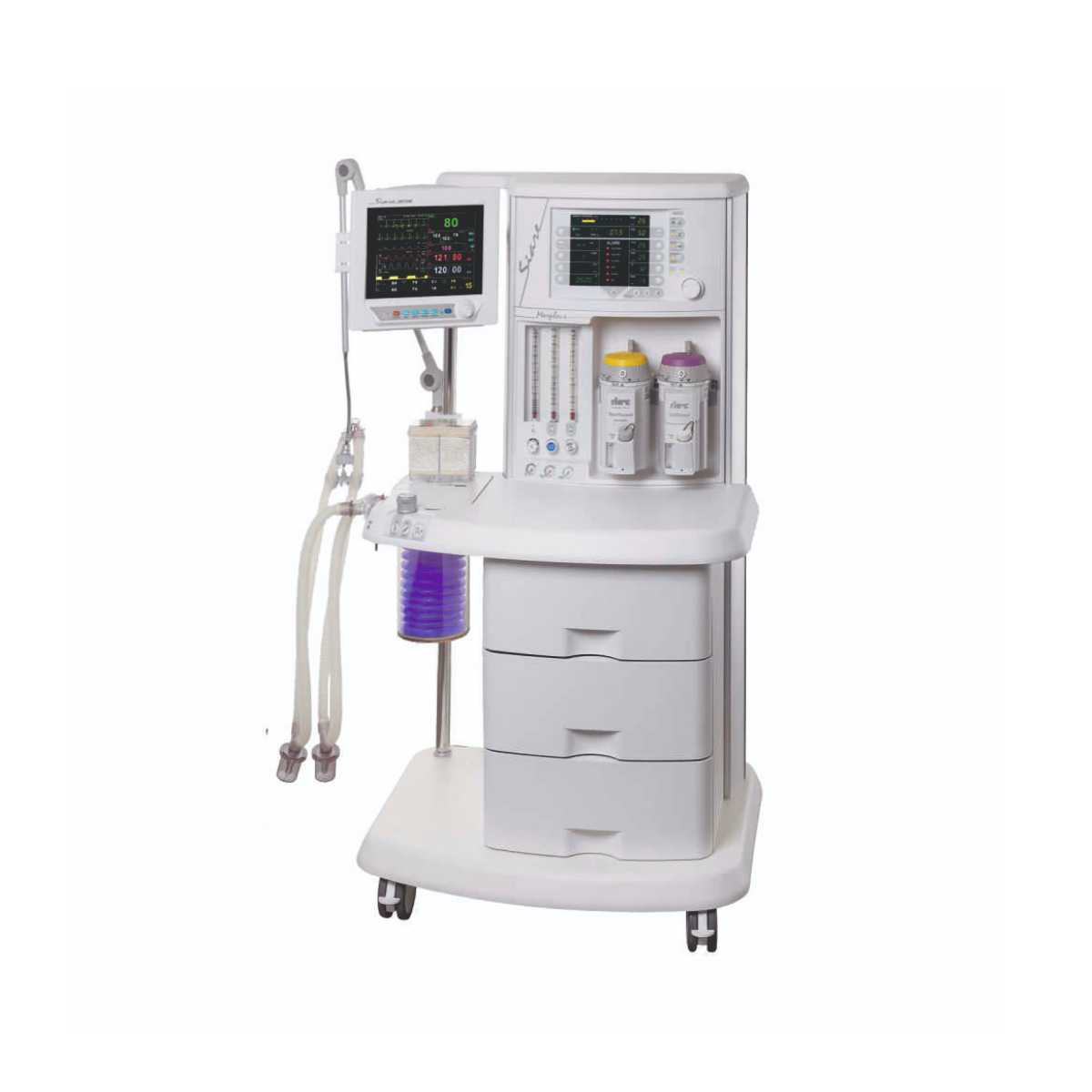

The MORPHEUS M is an anaesthesia machine and it can be used on adult, children and newborn patients. The MORPHEUS M is suitable for administration of Oxygen ? Air ? Nitrous Oxide ? Halothane ? Enflurane ? Isoflurane ? Sevoflurane ? Desflurane mixtures.
Features:
Mechanic gas mixing system
Electronic lung ventilator with 12? TFT colour display
Valves group: open, semi-closed, closed, heated, with soda lime absorber (1,5 Kg)
SIARETEX rapid connection device, Selectatec compatible for 2 vaporizers
Gas supply group
Ventilation modalities: APCV-PCV; APCV-TV; PSV; APNEA BACK-UP; VC-VAC; VC-VAC BABY; SIMV+PS (volumetric); SPONT; MANUAL.
Measured parameters: PAW; PEEP; Vte; ExpMV; Rate; I:E; FiO2, Pmax; Pmean; Pause; Vti; FLOWi; FLOWe; Tinsp; Tesp; Tpause; Cs; Ri
Displayed ventilation curves: Paw, Flow, Volume, Loop (Volume/Paw ; Volume/Flow)
Adjustable parameters:
? O2 built-in Mixer device from 21% to 99%
? I:E Adjustable Ratio: 1:1-1:2-1:3-1:4-2:1-3:1
? Inspiratory Flow
? PEEP
? Breathing Rate
? Minute Volume;
? Tidal Volume
? Inspiratory Pressure Limit
? Inspiratory Pause
? Inspiratory Time
? Trigger
Mechanic flowmeter module: 3-flow mechanical flow meter (O2 ? N2O ? AIR) with 5 flow meters for low flows. Equipped with safety systems (MIX-LIFE, CUT-OFF, flow meter protection valve).
Breathing system: The breathing system of Morpheus guarantees to the user an absolute flexibility and easy handling thanks to the noble construction materials employed. The valves group can be drawn-up and it?s totally autoclavable at 121?C and all its parts are manually dismountable, with no need of special tools.The breathing system is made of; Calibrated APL valve, Fresh gas collecting bag, O2 cell for reading of FiO2, Removable 1 kg soda lime canister, Manually inspectionable bellows jar, Safety valve for ambience air suction in case of fresh gas failure, Flow transducer inside the group located on the expiratory line.
Optional accessories
11054 AIRPAK 54 stand-alone medical air compressor
100150/IDF Isoflurane Vaporizer
100148/IDF Fluo-Halotane Vaporizer
100145/IDF Sevoflurane Vaporizer
100151/IDF Desflurane Vaporizer
A57.049-800601 gas analysis module (5 AA ? CO2 ? N2O ? O2 ? MAC) ric.auto
Click Here To Download Catalogue
)
Description
Medical Grade Anaesthesia Machine With Monitor and Double Vaporizer
Anaesthesia Machine With Monitor and Double Vaporizer designed for medical professionals across Nigerian healthcare facilities. These medical-grade products provide reliable performance for clinical applications.
🔹 Advanced Features & Medical Technology
Manufactured from medical-grade materials with quality construction, featuring durable design, clinical performance standards, regulatory compliance, and professional reliability.
📏 Size Options & Clinical Specifications
Available in multiple sizes and configurations. Professional packaging for healthcare facility requirements.
✅ Medical Certifications & Quality Assurance
NAFDAC registered for medical use in Nigeria with ISO 13485 medical device quality management certification. Manufactured under strict quality control protocols with batch testing and traceability. 5-year shelf life with proper storage conditions.
📋 Clinical Usage & Safety Protocols
Follow standard medical protocols for single-use medical devices. Inspect packaging integrity before use. Store in clean, dry environment at room temperature. Dispose according to medical waste regulations per Nigerian healthcare guidelines.
🏥 Healthcare Facility Applications
Essential across multiple clinical departments including General Practice, Emergency Care, and Specialized Medical Units. Supports doctors, nurses, and medical technicians throughout Nigeria’s healthcare system from primary care to tertiary hospitals.
🛠️ Professional Support Services Nigeria
Comprehensive support includes clinical training programs, 24/7 technical support hotline, inventory management solutions, NAFDAC regulatory compliance support, and bulk pricing for volume purchases.
🚚 Medical Equipment Delivery
Same-day delivery available in Lagos and Abuja, 2-3 days nationwide Nigeria. Temperature-controlled shipping for sensitive medical products with tracking and delivery confirmation.
? O2 built-in Mixer device from 21% to 99%
? I:E Adjustable Ratio: 1:1-1:2-1:3-1:4-2:1-3:1
? Inspiratory Flow
? PEEP
? Breathing Rate
? Minute Volume;
? Tidal Volume
? Inspiratory Pressure Limit
? Inspiratory Pause
? Inspiratory Time
? Trigger
