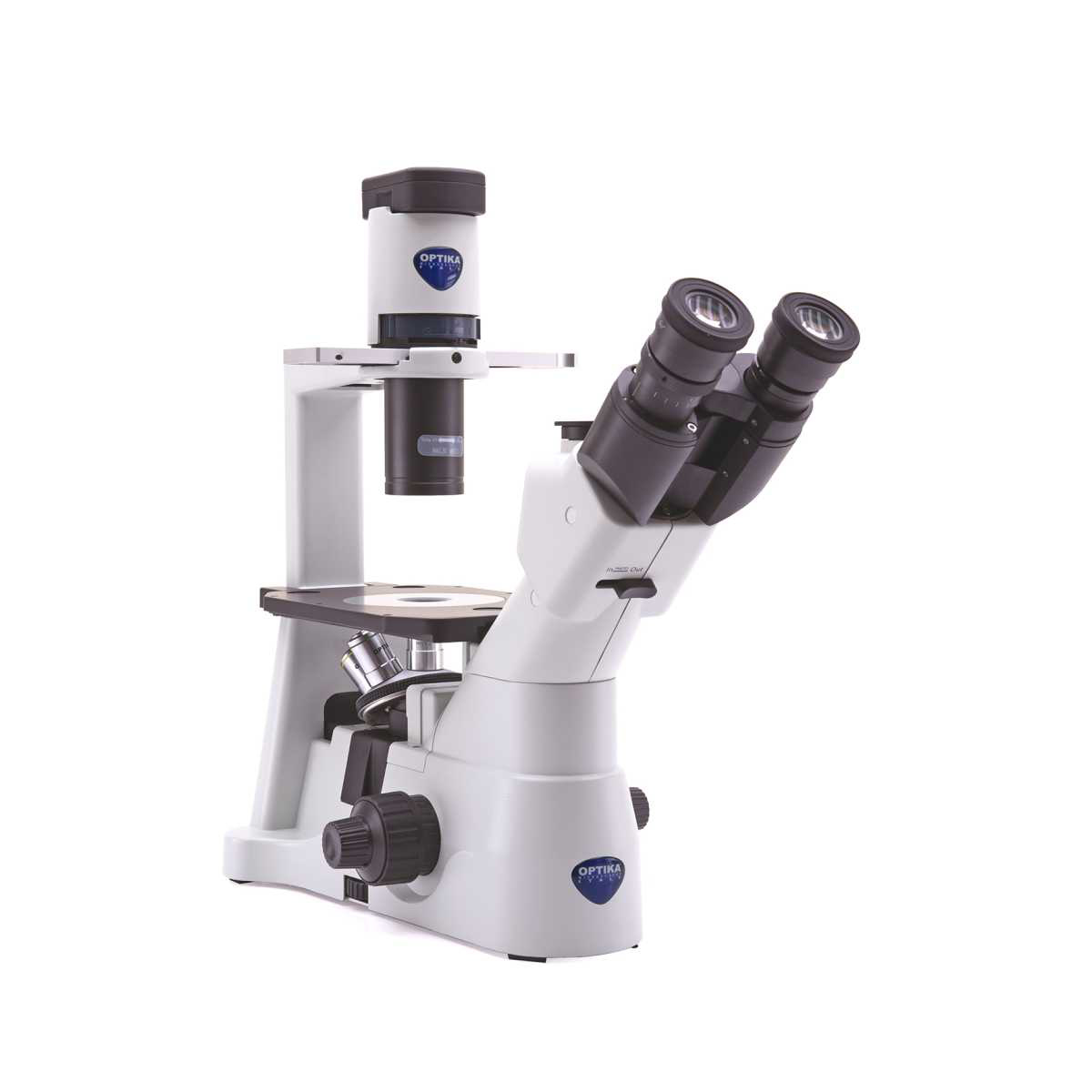

OPTIKA IM-3 Inverted Trinocular Phase Contrast Microscope – Medical Grade Professional (Healthcare)
Professional general medical supplies for medical applications. Clinical grade quality, reliable performance. Healthcare facilities.
Specifications
Observation Modes
Brightfield, phase contrast.
Head
Trinocular observation head, inclined 45?.
Diopter adjustment on left eyepiece.
Interpupillary adjustment 50-75 mm.
Eyepieces
Wide field eyepieces WF10x/22 with field number 22.
Objectives
Infinity corrected optical system IOS (Infinity Optical System).
Plan-achromatic LWD objectives infinity corrected, for thickness 1.2 mm, made by following objectives:
IOS LWD W-PLAN PH 10x/0.25, W.D. 7.30 mm
IOS LWD W-PLAN PH 20x/0.40, W.D. 6.86 mm
IOS LWD W-PLAN PH 40x/0.65, W.D. 3 mm
All objectives are treated with an anti-fungus treatment.
Stage
Fixed stage, dimensions 250 x 160 mm.
2 stage insert (glass and metal) with a hole for small dimension specimens.
OPTIONAL:
Mechanical stage mountable on the right side of the stage, total dimension = 250 x 230 mm, X-Y translation range 120 x 80 mm, metallic interchangeable inserts for slides, Petri dishes, Terasaki, multi-Well plates, etc.
Pair of side extensions to expand the surface of the stage.
Nosepiece
Quintuple revolving nosepiece, rotation on ball bearings.
Focusing
Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser
LWD condenser, N.A. 0.30, working distance 72 mm. The condenser can be removed to extend the working distance up to 150 mm. Presented slider with phase rings 4x/10x and 20x/40x.
Illumination
Light source type X-LED8 with white 8W LED; light intensity control using a knob on the front side of the frame.
Color temperature: 6300K
LED average lifetime approx. 50,000h
Voltage: 110/240Vac, 50/60Hz, 1A; Fuse: T500mA 250V
Max power required: 13W
Dimensions
Height: 495 mm
Width: 230 mm
Width with optional mechanical stage: 300 mm
Depth: 540 mm
Weight: 9 kg
Accessories
Blue, green and frosted filter. Instruction manual and dust cover included.
?
Click Here To Download Catalogue
Description
Medical Grade OPTIKA IM-3 Inverted Trinocular Phase Contrast Microscop
OPTIKA IM-3 Inverted Trinocular Phase Contrast Microscope designed for medical professionals across Nigerian healthcare facilities. These medical-grade products provide reliable performance for clinical applications.
🔹 Advanced Features & Medical Technology
Manufactured from medical-grade materials with quality construction, featuring durable design, clinical performance standards, regulatory compliance, and professional reliability.
📏 Size Options & Clinical Specifications
Available in multiple sizes and configurations. Professional packaging for healthcare facility requirements.
✅ Medical Certifications & Quality Assurance
NAFDAC registered for medical use in Nigeria with ISO 13485 medical device quality management certification. Manufactured under strict quality control protocols with batch testing and traceability. 5-year shelf life with proper storage conditions.
📋 Clinical Usage & Safety Protocols
Follow standard medical protocols for single-use medical devices. Inspect packaging integrity before use. Store in clean, dry environment at room temperature. Dispose according to medical waste regulations per Nigerian healthcare guidelines.
🏥 Healthcare Facility Applications
Essential across multiple clinical departments including General Practice, Emergency Care, and Specialized Medical Units. Supports doctors, nurses, and medical technicians throughout Nigeria’s healthcare system from primary care to tertiary hospitals.
🛠️ Professional Support Services Nigeria
Comprehensive support includes clinical training programs, 24/7 technical support hotline, inventory management solutions, NAFDAC regulatory compliance support, and bulk pricing for volume purchases.
🚚 Medical Equipment Delivery
Same-day delivery available in Lagos and Abuja, 2-3 days nationwide Nigeria. Temperature-controlled shipping for sensitive medical products with tracking and delivery confirmation.
