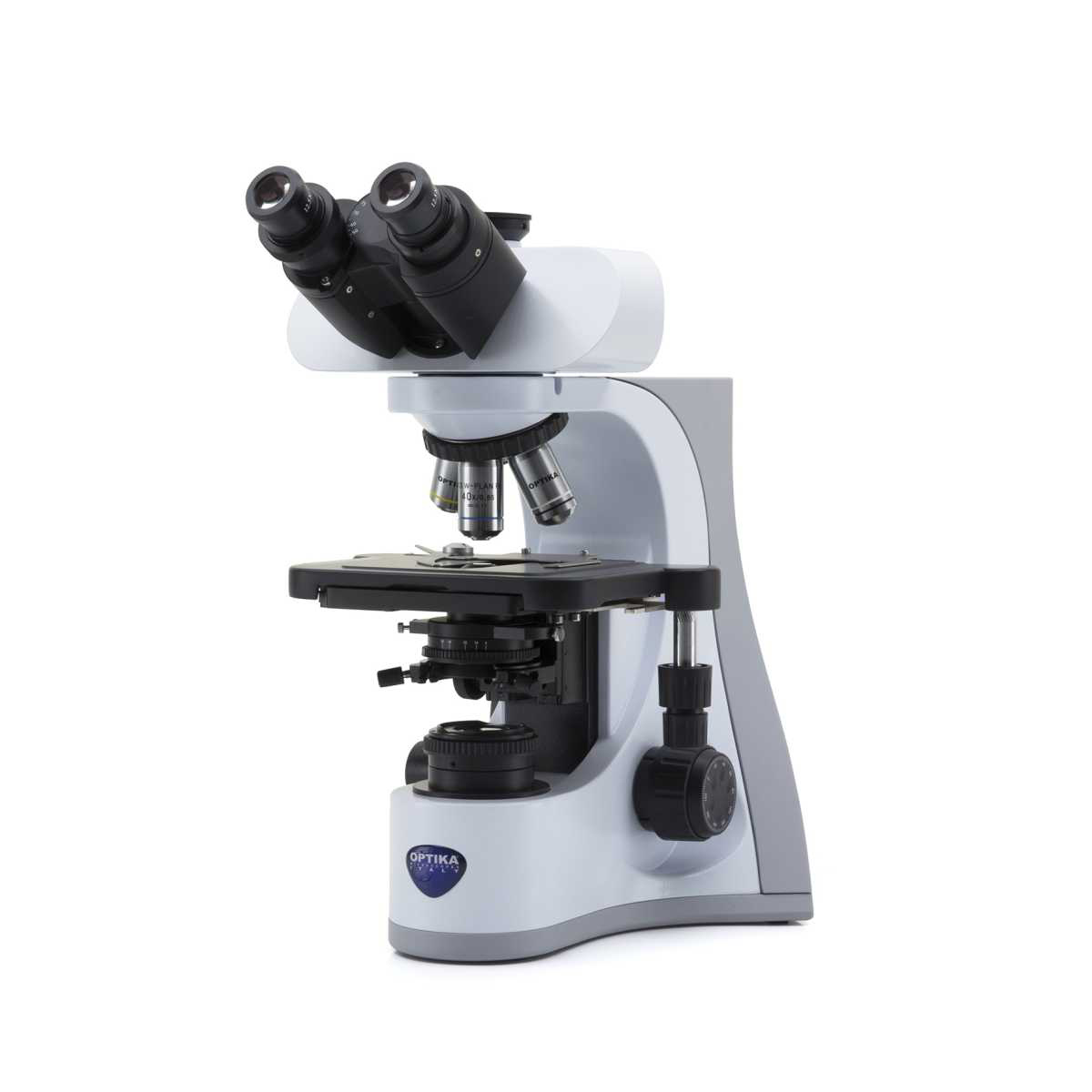

Optika B-510ASB Trinocular Phase Contrast Microscope – Medical Grade Professional (Healthcare)

Professional general medical supplies for medical applications. Clinical grade quality, reliable performance. Healthcare facilities.
Advanced routine laboratory microscope for brightfield and phase contrast observations with IOS W-PLAN objectives and rackless stage. Ideal for Asbestos analysis in accordance to international rules with 12.5x eyepieces and Walton & Becket graticule to perform perfect asbestos fibers analysis at a glance. The high-efficiency X-LED3 makes it reliable for all transmitted light observations.
Features:

Observation mode:?Brightfield, phase contrast.
Head:?Trinocular (fixed 50/50), 30? inclined, 360? rotating.
Interpupillary distance:?Adjustable between 50 and 75 mm.
Dioptric adjustment:?On the left eyepiece tube.

Eyepieces:?WF10x/22 mm, high eye-point and WF12.5x/18 mm with dioptric adjustment, one with Walton & Beckett graticule.
Nosepiece:?Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:

? IOS W-PLAN 4x/0.10

? IOS W-PLAN 10x/0.25

? IOS W-PLAN PH 40x/0.65

? IOS W-PLAN 100x/1.25 (Oil)

All with anti-fungus treatment.
Specimen stage:?Double layer rackless mechanical stage, 233_147 mm, 78_54 mm X-Y range.
Focusing:?Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser:?Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. With 40x phase contrast slider.
Transmitted illumination (Full Koehler type):??X-LED_ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

?
Technical Specifications:

Observation Method ?
Transmitted Light
Brightfield
Yes

?
Phase contrast (Positive type)
Yes

?
Darkfield
As optional

?
Simple polarized light
As optional

Main Body
Type
Upright

?
Construction material
Aluminum die-cast

?
Trasportation handle
Yes

Head
Type
Trinocular (Siedentopf)

?
Split ratio
50/50

?
Inclination
30?

?
360? rotating
Yes

?
Interpupillary distance (mm)
50-75

?
Tube inner diameter (mm)
30

Eyepieces
Field number (mm)
22

?
Magnification
10x

?
Planar type
Yes

?
Micrometric scale
As optional

?
Diameter of micrometer glass (mm)
26

?
High eyepoint (for glass wearers)
Yes

?
Rubber cup
Yes

?
Retractable protections
Yes

Nosepiece
Positions
Quintuple

?
Reversed
Yes

?
Bi-directional
Yes

?
Rotation on ball bearings
Yes

?
Objective thread
RMS

Objectives
Optical system
?

?
Anti-fungus treatment
Yes

?
Parfocal distance (mm)
45

?
Standard magnifications
40x-1000x

?
Type
IOS W-PLAN

?
Objectives included
4x/0.10, W.D. 17.3 mm
10x/0.25, W.D. 10 mm
PH 40x/0.65, W.D. 0.54 mm
100x/1.25 (Oil),
W.D. 0.13 mm

Stage
Type
Double layer

?
Dimensions (mm)
233_147

?
Moving mechanism
Rackless

?
Moving range (mm)
78_54

?
Material
Anti-scratch painting

?
Specimen holder
Yes

?
Slide number
2

?
X-Y Vernier scale
Yes

?
Vernier scale accuracy (mm)
0.1

Condenser ? Multiple
Position
Type
Abbe.
Brightfield ? Phase contrast

?
Number of positions
2 (BF, 40x)

?
Numerical aperture (N.A.)
1.25

?
Magnification scale for simplified positioning
Yes

?
Removable
Yes

?
Diaphragms
Iris

?
Centrable
Yes

?
Focusable
By rack and pinion

Focusing System
Type
Coaxial coarse & fine

?
Coarse total travel (mm)
25

?
Fine total travel (per single rotation) (mm)
0.2

?
Fine graduations
100

?
Fine resolution (?m)
2

?
Upper stop to prevent contact
Yes

?
Adjustable tension
Yes

?
Flat knob for ergonomy
Yes

Transmitted
Illumination
Kohler illumination
Full

?
Type
X-LED

?
X-LED type
X-LED3

?
Light source power (W)
3.6

?
Brightness control
Manual
?

?
Lifetime (hours)
> 65,000

?
Temperature (K)
6,300

?
Max. required power (W)
6

Power Supply for
Transmitted
Illumination
Type
External

?
Microscope connector
Jack, 2.1 mm

?
Power plug type
Multi-plug (EU, UK, US)

?
Input voltage
100/240 Vac, 50/60 Hz

?
Output voltage
6 Vdc ?2.5A

Accessories Included
Dust cover
Yes

?
Immersion oil (10ml)
Yes

?
Tension adjustment tool
Yes

?
Allen wrench
Yes

?
Centering telescope
Yes

?
Green filter
Yes

?
User Manual
Digital version (downloadable)

Additional Information

Heating stage (as optional).
External rechargeable battery pack (as optional).

Product Weight
Height (mm)
405

?
Width (mm)
235

?
Depth (mm)
370

Product Weight
(kg)
9
