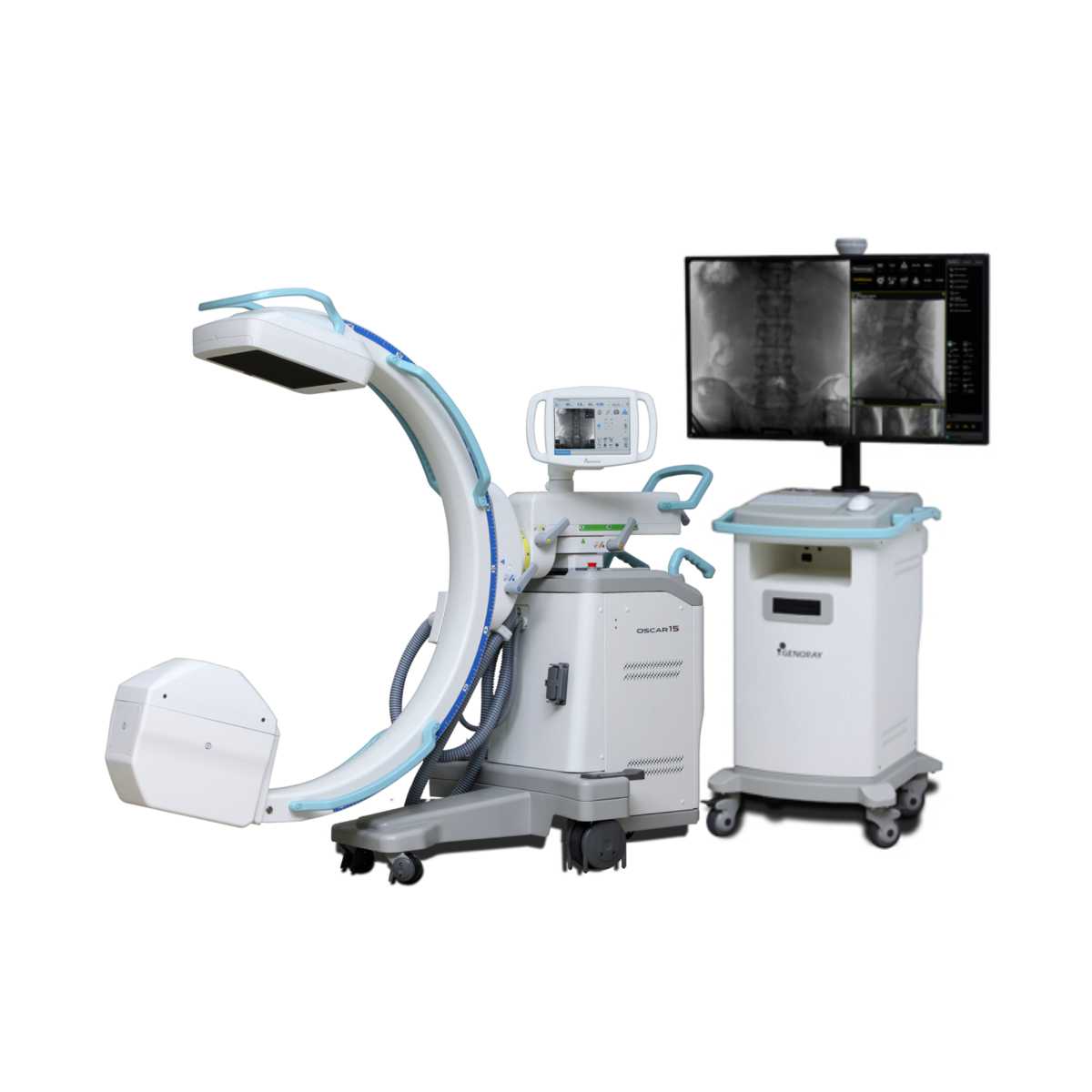

Genoray OSCAR 15 Surgical C-Arm Machine – Medical Grade Professional (Healthcare)

Professional general medical supplies for medical applications. Clinical grade quality, reliable performance. Healthcare facilities.
The OSCAR 15 is a culmination of several years worth of developmental experience from Genoray. With CMOS imaging excellence & 15kW HFG you diagnosis need will be met while improving your productivity especially DSA (Digital Subtraction Angiography).
?APPLICATION

General Surgery
Office based Vascular Center
Pain Management
Orthopdics
Urology
Cardiac Procedures
Hybrid OR
Neuro & Spine Surgery
Pain Management
Orthopedic Surgery
Trauma Procedure -Urology Procedure
Cardiac Surgery
Peripheral Artery Diseases -Vascular Surgery

?
SPECIFICATION

260 x 260 mm CMOS Type Flat-Panel detector for distortion-free imaging (High resolution images, Wide FOV, Low Noise)
15kW HFG
4_Touch LCD monitor
43_ LCD Monitor
Dual Foot Switch
DICOM 3.0 -CD/DVD Burner ? USB Port
800mm free space and 150? (+90?,-60?) orbital rotation, SID 1,000mm
155? Dynamic Orbital Rotation
2 kW Stationary Anode X-Ray Tube
5 Million Images Storage Capacity

?
FEATURE
Exceptional Image Quality

With an optimal flat panel detector size of 26 x 26cm you won?t miss a thing with its high quality resolution. It makes accurate diagnosis in a variety of departments especially DSA

Low Dose Mode?????

Low dose mode is desgined to acquire reasonable image to diagnose the patient with minimum dosage.

Edge Enhancenment

For user to get more accurate diagnosis result enhancing edge of image.

Motion Correction

This function detects the movement and reduce the after image while exposing X-ray.

Metal Correction

To prevent over-dose radiation or low quality image casued by metal inturrption on field of view.

Virtual Collimator

The virtual collimator allows for the selection of your desired field of view, while reducing the amount of radiation exposure by limiting the X-Ray beam.

Auto Collimation

Prevention of unncessary X-Ray exposure by focusing on the area of interest while autmoatically collimating the remaining areas.

?
POWERFULL SOFTWARE ZENIS
A total solution from acquisition, storage, management, communication to print out. Provide convenient environment from user-centric interface. Diagnosis and confirm from recognizable simple icons. Convenience of database management.

Convenient diagnostic functions for easy patient / image management
Accurate diagnostic tools
Improve the efficiency of your hospital management
Perfect compatibility with all PACS
A must have for a digitally equipped hospital
Convenient communication and management for your customers
Dicom Support

?
DIGITAL SUBTRACTION ANGIOGRAPHY
Native DSA

Pairing fluoroscopy with constrast media to display the basic angiography views

Motion Matching

Selects the proper mask to apply and remove artifacts made by a patient?s movement or breathing

Post-Processing

Processing: Improvement of the processed image after the DSA procedure

Landmarking / Brightness / Contrast

After setting the position for a vessel, the subject can be placed back to their original position by using the shift function to compensate for any movement. Allows for various functions that assist with accurately inserting a catheter.

Peak Opacification

Ability to diagnose a blood vessel with only a small amount of contrast media

Road Mapping, Land Mark

After setting a position for a vessel, the subject can be moved back to their original place by using the shift function to compensate for any movement. Provides various functions that helps accurately to insert a guide wire, catheter is compatible with the hybrid operating room.

Auto Roadmap Mask

Obtain blood vessel type information while only using a small amount of contrast media

Manual Roadmap Mask

Roadmap your vessels using a prevoiusly taken DSA image

Roadmap Pixel Shift

Re-position the roadmap mask by shifting the pixels to the proper position
