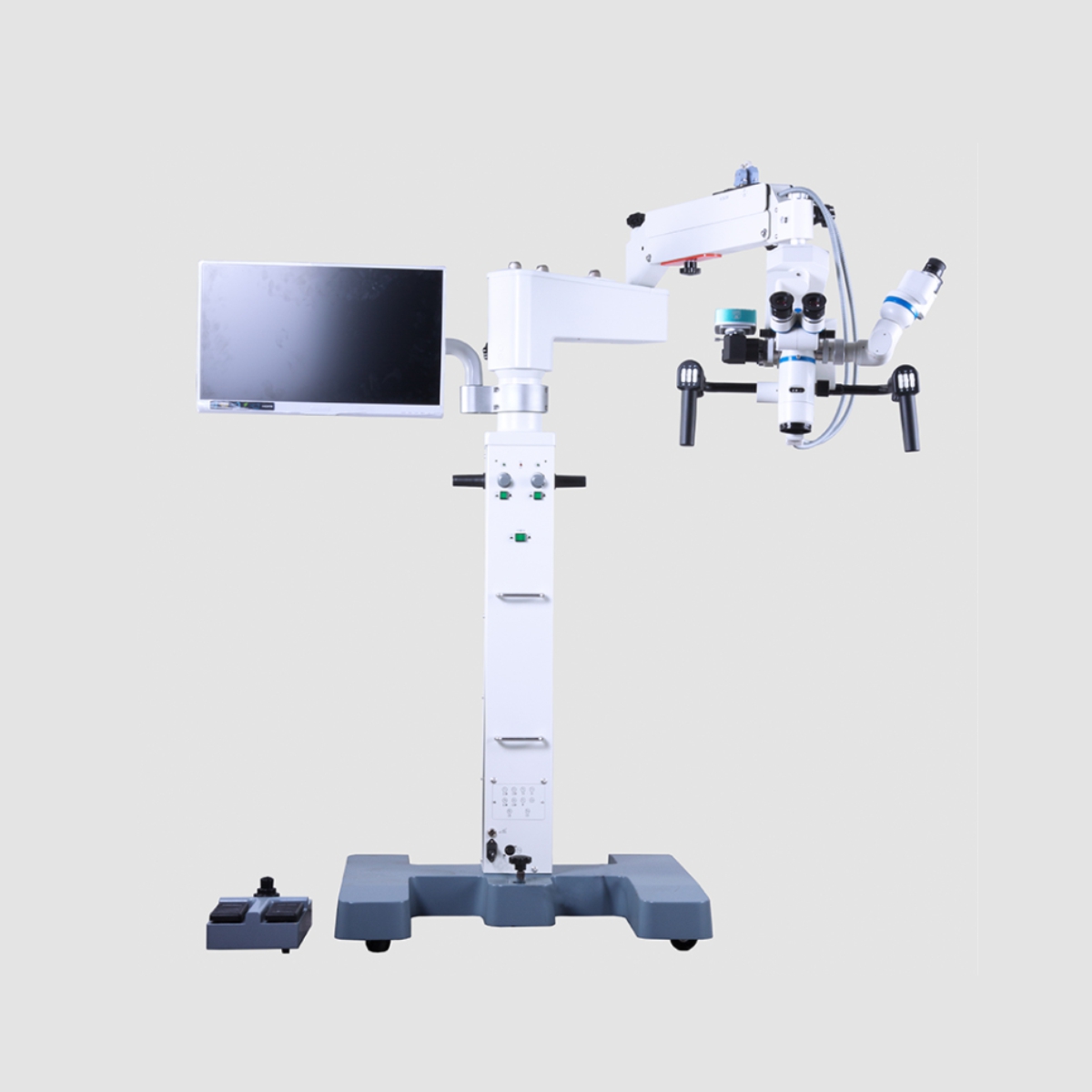

ENT/Neurosurgery Operating Microscope – Medical Grade Professional (Healthcare)
Professional general medical supplies for medical applications. Clinical grade quality, reliable performance. Healthcare facilities.
Features:
Corder Microscope has Fluid, Responsive and Accurate.
Fluid. Responsive. Accurate. These were a few of the principles guiding every phase in the design of the Corder Microscope. With the choicest mechanical machined components, the Corder Microscope has the grace and agility to adjust to every desired position on command. Well designed Apochromatic optics treated with Corder?s Mcoatings produce true-to life sharp images with high depth, definition and contrast.
More comfortable operation
Tiltable binocular tubes available, which can incline more than 60? depending on the posture and physique of the operating surgeon.
Movable range: 30? (straight) to 90? (inclined) Corder microscope configured with XYZ motorized movement operated through a comfortable foot /Handle control, a veryeffective co-axial illumnation and 50W halogen light source makes it ideal for Neuro surgeries.
Doctor-patient communication is easier
To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are made available with the ProLine in addition to Corder?s proprietary iVu multi-functional imaging solution. 1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication.
?
Technical Permeants:
Magnification: motorized zoom system, 1:6 zoom ratio, magnification 3x~16x
Focusing range: 50mm
Binocular tube: 30?~90? tiltable tube _(0? ~200? optional)
Eyepiece: 12.5x / 10x
Objective lens: F 300mm(175mm, 250mm, 350mm optional)
pupil distance: 55mm~75mm
diopter adjustment: +6D ~ -6D
Field of view: _74~_12mm
X-Y translator: Motorized by foot switch or handle controller, ?30mm
Assistant tube: 360? Rotating assistant tube
Reset functions: YES
?
Illumination
System: Coaxial illumination
Light source: Halogen lamp
Light intensity adjustment: Continuous brightness adjustment 0-100000lux
Fiber optic illumination: Dual fiber
Field of illumination: _50mm
Filter: Red free filter, small spot
?
Accessories
CCD Camera system: Beam splitter, CCD adapter, CCD, Display
XENON LAMP: 150000lux
Integrated Video Adapter: SONY / CANON Camera
Click Here To Download Catalogue
Description
Medical Grade ENT/Neurosurgery Operating Microscope
ENT/Neurosurgery Operating Microscope designed for medical professionals across Nigerian healthcare facilities. These medical-grade products provide reliable performance for clinical applications.
🔹 Advanced Features & Medical Technology
Manufactured from medical-grade materials with quality construction, featuring durable design, clinical performance standards, regulatory compliance, and professional reliability.
📏 Size Options & Clinical Specifications
Available in multiple sizes and configurations. Professional packaging for healthcare facility requirements.
✅ Medical Certifications & Quality Assurance
NAFDAC registered for medical use in Nigeria with ISO 13485 medical device quality management certification. Manufactured under strict quality control protocols with batch testing and traceability. 5-year shelf life with proper storage conditions.
📋 Clinical Usage & Safety Protocols
Follow standard medical protocols for single-use medical devices. Inspect packaging integrity before use. Store in clean, dry environment at room temperature. Dispose according to medical waste regulations per Nigerian healthcare guidelines.
🏥 Healthcare Facility Applications
Essential across multiple clinical departments including General Practice, Emergency Care, and Specialized Medical Units. Supports doctors, nurses, and medical technicians throughout Nigeria’s healthcare system from primary care to tertiary hospitals.
🛠️ Professional Support Services Nigeria
Comprehensive support includes clinical training programs, 24/7 technical support hotline, inventory management solutions, NAFDAC regulatory compliance support, and bulk pricing for volume purchases.
🚚 Medical Equipment Delivery
Same-day delivery available in Lagos and Abuja, 2-3 days nationwide Nigeria. Temperature-controlled shipping for sensitive medical products with tracking and delivery confirmation.
