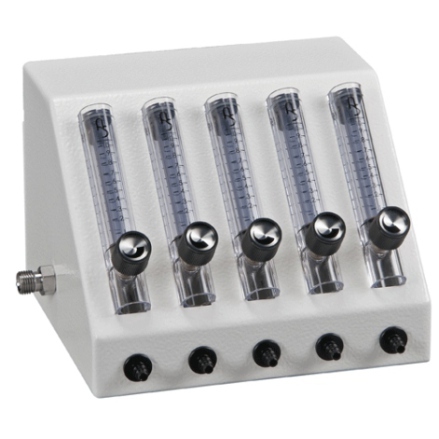

MULTI-PATIENT OXYGEN FLOW STATION

Providesoxygenforupto5patientsperunit,allfromasingleO2source
For use with pediatrics toadults
Can be connected with 2 or more units to accommodate moreusers
Configured with 5 low flow flowmeters
Can be wall-mounted or placed on atabletop/desktop
Ideal for use with the New Life Intensity 10-series unit or any up-to-50 psig(345kPa)O2source
Can be customer-configured with any combination of flowters


Speciation;

Dimensions: 5.8” high x 9.7” wide x 7.2” deep (14.7 cm x 24.6 cm x 18.3 cmdeep)
Flow Rates: Low flow flowmeters can be used from 1/10 LPM to 1 LPM with . 1 LPM increments with back lines for proper viewingangle.
Flowmeter Accuracy: 0-1 LPM flowmeter ± 3% of full scale; 0-2 LPM flowmeter ± 5% of fullscale
Inlet Pressure: 7-50 psig (48-345kPa)
Operational temperature Range: 40˚ to 140˚F (5˚ to 40˚C). (Operating unit outside of this angel can affect)
Storage Temperature Range: 30°F to 140°F (-1°C to60°C)
Weight: 3.8 lbs (1.7 kg)
