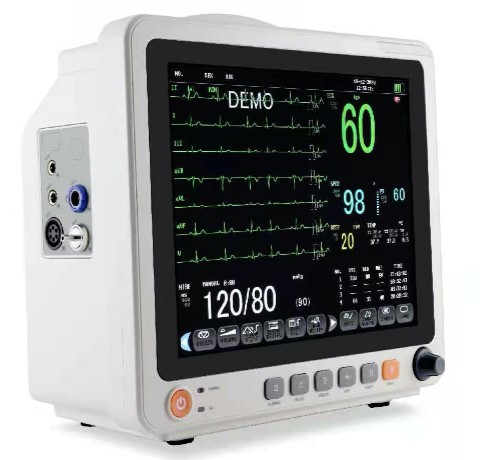

Features – Patient Monitoring System
- Touch-screen for easy operation
- 12.1 inch high resolution color TFT display
- USB interfaces support easy software upgrade and data transfer
- Compatible with Central Monitoring System (CMS)
- Three Working Modes: Monitoring, Surgery and Diagnosis
- Simple and friendly operating display interface
- Multi-display modes suitable for different applications: Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP Trend
- Built-in high capacity battery up to 3 hours of continuous work
- VGA output for external display
Technique Specification
ECG
- Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V)
- Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
- Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
- Resolution: 1 BPM
- Accuracy: ±1%
- Sensitivity >200 uV(Peak to peak)
- ST measurement range: -2.0 ~ +2.0 mV
- Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater
- Other Range: unspecified
- Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s
- Bandwidth:
- Diagnostic: 0.05~130 Hz
- Monitor: 0.5~40 Hz
- Surgery: 1~20 Hz
